Installing a Digital Voltmeter

Step 3 of 4
"Monitor your battery health in real-time — no tools needed."

Real-Time Monitoring

Digital voltmeters show battery voltage while riding. Wire to switched line (not direct battery) to avoid drain.

A healthy charging system should show around 12.6V when the key is on but engine is off, and 13.5-14.5V when the engine is running. Lower readings could indicate charging problems.

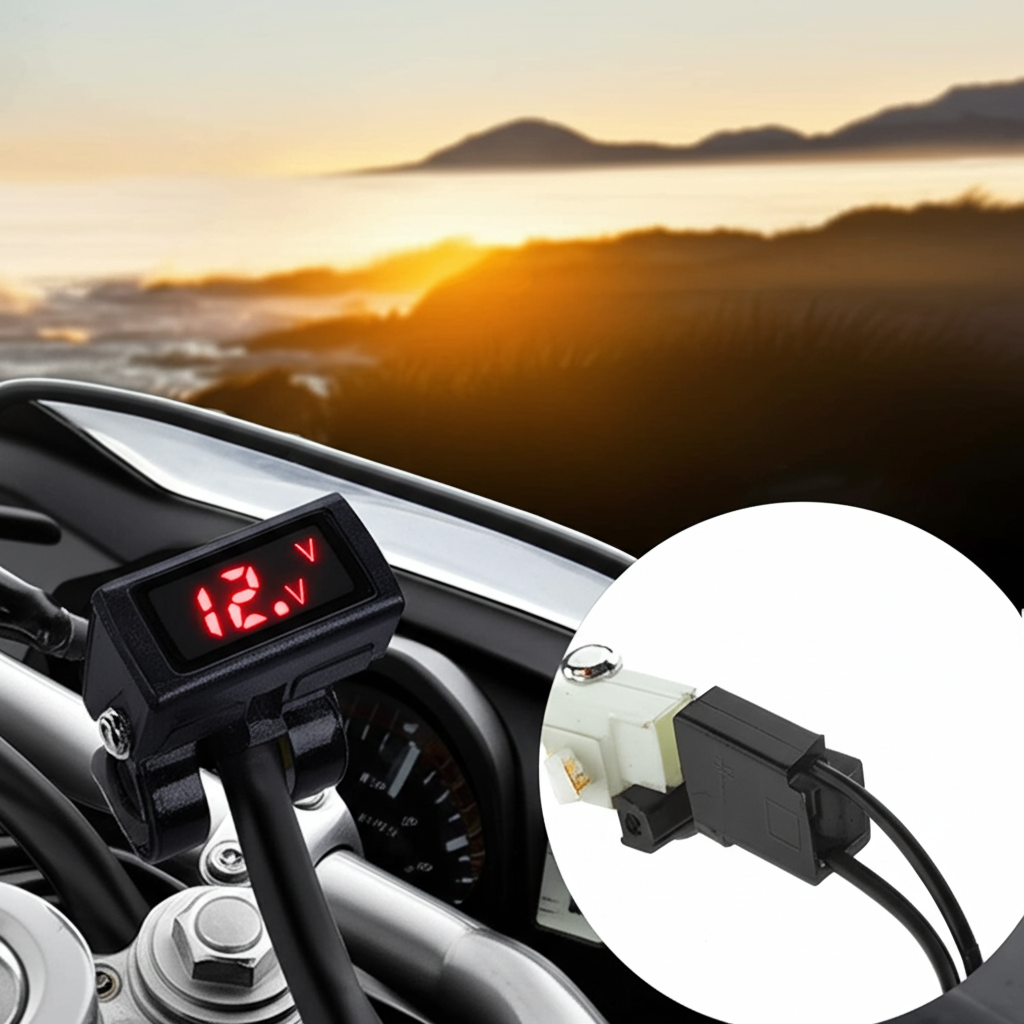

Digital Voltmeter

🎞️ Voltmeter Operation

12.6V

Digital voltmeter shows battery voltage

V

🎙️ Listen to Explanation

Your voltmeter is a window into your bike's heartbeat. Watch it to avoid surprises.

0:000:00

In this lesson, you'll learn:

  • How to install a digital voltmeter on your motorcycle
  • How to interpret voltage readings
  • How to diagnose charging system issues using voltage readings
  • The importance of monitoring battery health

🧩 Voltmeter Simulation

See how voltage readings change as you turn the key and start the engine.

--.-V
Key Position:OFF
Engine Status:OFF
Voltage Reading:NO READING

Turn the key on to see the battery voltage.

❓ Quiz

What should your voltage be when engine is ON and charging?
